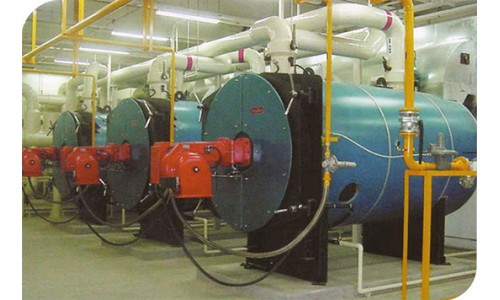

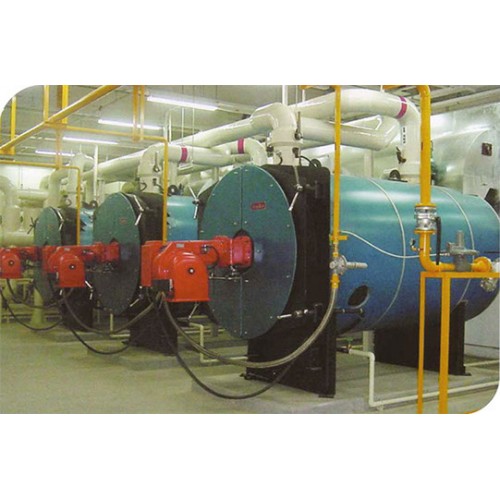

TITAN HT HOT WATER BOILER
| Heating Capacity | 117kW to 5861 kW |
| Working Pressure (max) | 4.48 bar / 10.34 bar |
The HT Model is built to conform to BS2790 or any other international standards on special request.
The Boiler adopts the reversal-flame principle of combustion where the hot gasses make two passes within the pressurised combustion chamber and the final pass through the fire-tubes to exit out to the chimney.
The combustion chamber is supported by stay bards at its rear end. It stands clear of the boiler drum end plate, thus giving rise to the wet-back design. The design feature not only increases the heating surface of the boiler but also keeps refractory works to a minimum.
TYPICAL APPLICATIONS
Hotels, laundries, industrial heating plants where a copious supply of hot water at constant tempreature is required.
BOILER CONTROLS
- ELECTRICAL
The electrical controls are mounted in a control panel fixed on the side of the boiler and carries the burner control equipment, curculation water punmp controls, lockout reset, indicawting lights for various starters, alarms, fuses and incoming mains isolator switch.
- WATER LEVEL
A flow-switch ensures that the boiler is fully flooded during operation.
- TEMPREATURE CONTROL
One combined contorl and safety thermostat to control the maximum temprerture of the hot water.
- BURNER
Fully automatic forced draught type liquid or gaseous fuel burner with ON/OFF or High/Low operation with electronic ignition.
